PRODUCT FEATURES
Irrigator Tips
Easy snap-on/snap-off design.
Strong, flexible, medical-grade polymer composition.

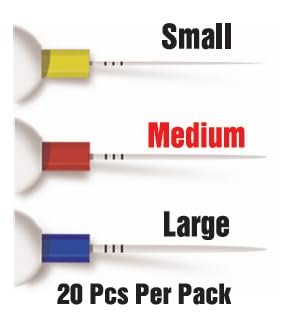

Color-coded by size.

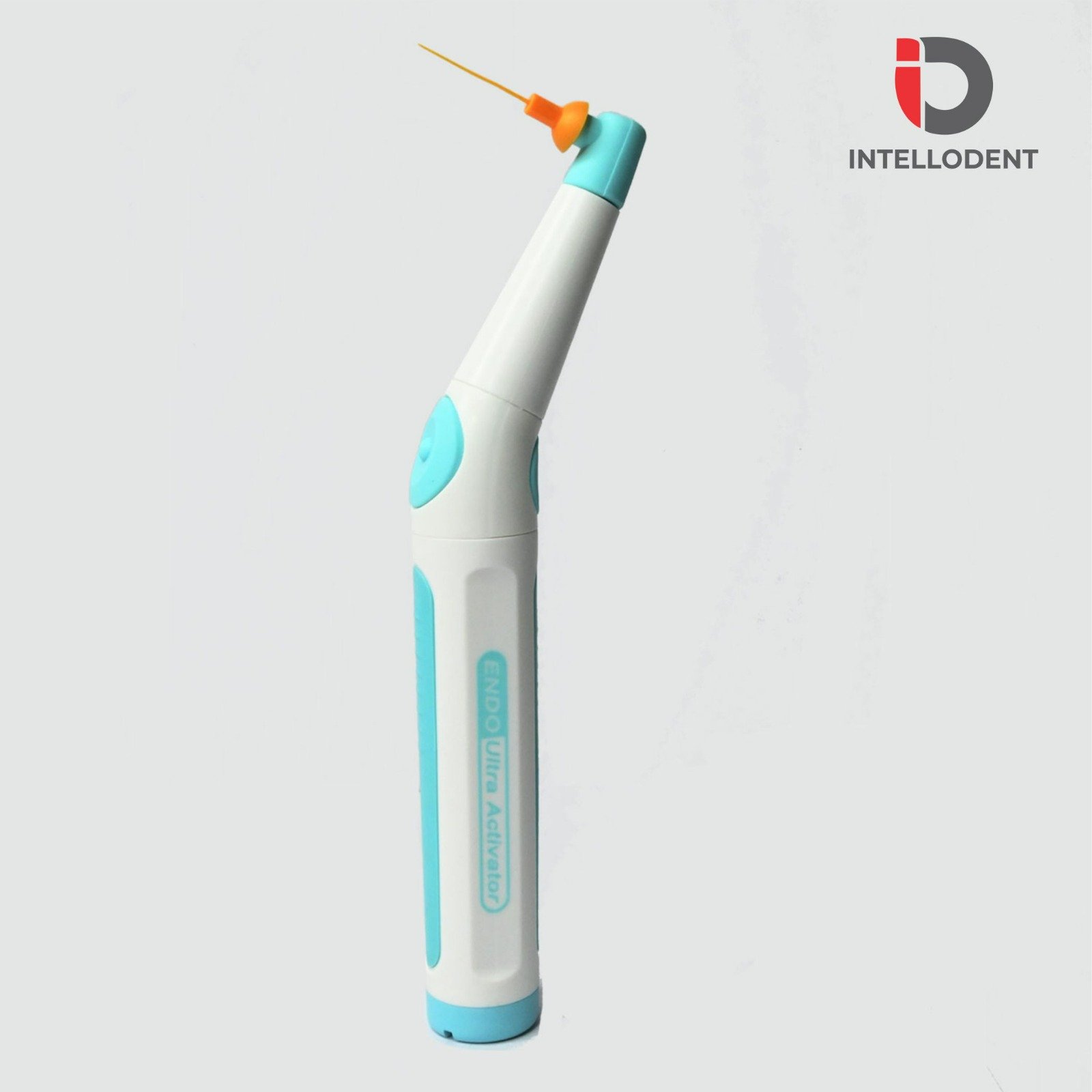

Handpiece/Driver
Contra-angled design for easy access to posterior teeth.
3-speed sonic motor provides options of 4,000, 6,000 and 10,000 cpm.
Ergonomic, cordless, and battery-operated handpiece.
TECHNIQUE SEQUENCE
Prepare canal to produce a fully tapered shape.
Fill pulp chamber with NaOCl, EDTA, or other final rinse solution.
Select the Irrigator tip that manually fits loosely within 2 mm of working length.
Place the barrier sleeve over the Driver to protect the entire handpiece.
Attach the Irrigator over the barrier-protected Driver.
Place the attached Irrigator tip into the prepared root canal.
Depress the on/off switch to activate solution.
Note: Switch defaults to 10,000 cpm, as indicated for cleaning procedures.
– Use a pumping action to move the Irrigator in short, 2–3 mm vertical strokes.
WARNING
Do not submerge unit in water.
Do not autoclave unit.
